-10~+15°C Fruit Vegetable Cold Storage Warehouse for Supermarket

-10~+15°C Fruit Vegetable Cold Storage Warehouse for Supermarket

  • -10~+15°C Fruit Vegetable Cold Storage Warehouse for Supermarket
  • -10~+15°C Fruit Vegetable Cold Storage Warehouse for Supermarket
-10~+15°C Fruit Vegetable Cold Storage Warehouse for Supermarket
Product Details:
Place of Origin: Guangdong
Brand Name: EASYCOOL
Certification: CE,CB,SASO
Model Number: SR-1M
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 10 days
Payment Terms: L/C, T/T
Supply Ability: 5000pcs/year
Contact Now
Detailed Product Description
Name:: Fruit Vegetable Cold Storage Room Warranty:: 1 Year
Voltage:: 380V 3Ph 50HZ Or Customized Insulation Panel:: Polyurethane(PIR)
Refrigeration Unit:: Germany Bitzer Or Taiwan Fusheng Or Customized Floor:: Pattern Aluminum For Anti-slip
Certification:: CE Production Capacity:: 5 MT ~ 100000 MT
High Light:

hot food display case

,

heated food display case

-10~+15°C Fruit Vegetable Cold Storage Warehouse for Supermarket

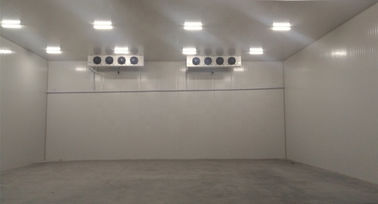

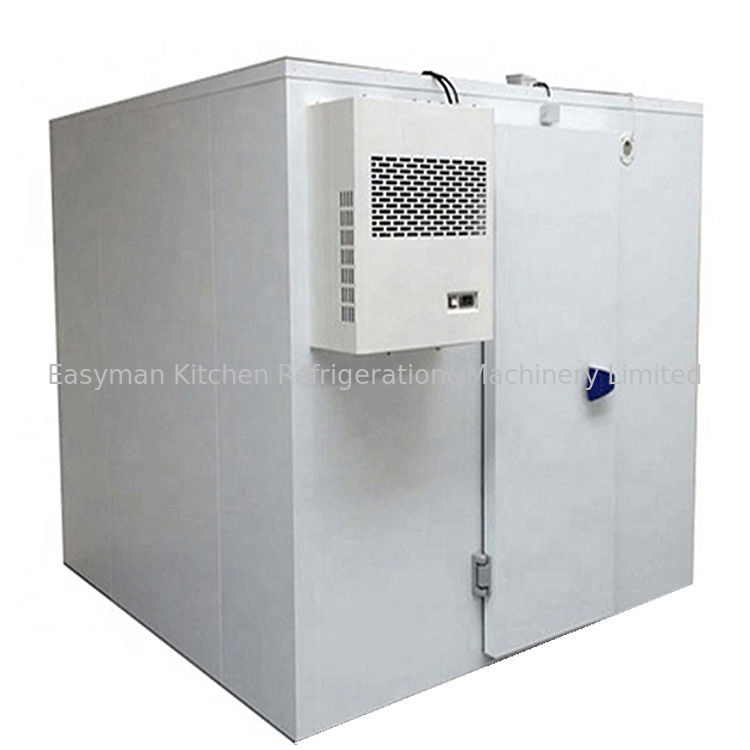

Cold storage room (also called walk in cooler ) is widely used in Fishery, fruit and vegetables, Supermarket, Hotel and Restaurant, etc. The temperature range of cooler goods walk in freeze is usually keeping in -10~+15°C by insulation and cooling system,With the help of walk in freezer, the stored fruit and vegetables is not perishable and the taste is good.
In general, the suitable temperature for storage of vegetables and fruits is 0 °C. In the environment of 0 °C, it can inhibit the growth and reproduction of microorganisms, prevent the freezing of fruits and vegetables, and prevent the rot and deterioration of vegetables and fruits caused by the water overflow in the cells caused by icing damage to the cell walls. When a large number of vegetables and fruits are on the market, vegetables and fruits can be preserved by refrigerating or quick freezing.


Main features of our cold room:
1) Neat appearance: The insulation panel and framework are available in different colors which are to be elected in satisfactory harmony with various styles of buildings.
2) Insulation: Polyurethane or polystyrene material with low thermal conductivity and high strength, achieving good insulation performance.
3) Modular insulation panels and integrated design. Convenient installation and short construction period.
4) High hygienic conditions of food storage up to the standards.
5) Durable building structure, super quality material.
6) Wide temperature ranges: from -30°C to up to + 10°C;
7) Size and structure of the cold room can be customized design accordingly.


The complete cold room system mainly include the following main parts
1. Cold room body including insulation panels and doors;
2. Air cooler;
3. Refrigeration unit;
4. Accessories;


Detailed description:
-10~+15°C Fruit Vegetable Cold Storage Warehouse for Supermarket 0
-10~+15°C Fruit Vegetable Cold Storage Warehouse for Supermarket 1
-10~+15°C Fruit Vegetable Cold Storage Warehouse for Supermarket 2
-10~+15°C Fruit Vegetable Cold Storage Warehouse for Supermarket 3


Cold Room Panel (fish/meat/vegetable/medical using cold room)
Thickness of cold storage panelApplication temperature
50mmTemperature ≥10°C
75mmTemperature -5°C or above
100mmTemperature -5'C~-20°C or above
150mmTemperature -18'C~-35°C or above
200mmTemperature ≤-35°C


Cold Room With Split Unit Installation Introduction:

-10~+15°C Fruit Vegetable Cold Storage Warehouse for Supermarket 4

Step 1. Assembled all floor panels

-10~+15°C Fruit Vegetable Cold Storage Warehouse for Supermarket 5

Step 2. Assemble the wall panels

-10~+15°C Fruit Vegetable Cold Storage Warehouse for Supermarket 6

Step 3. Put up the roof panels and hang the air cooler to the roof panel

-10~+15°C Fruit Vegetable Cold Storage Warehouse for Supermarket 7

Step 4. Assemble the door [ sliding door and hinged door optional ]

-10~+15°C Fruit Vegetable Cold Storage Warehouse for Supermarket 8

Step 5. Fix the compressor unit at a place with good ventilation

-10~+15°C Fruit Vegetable Cold Storage Warehouse for Supermarket 9

Step 6. Connect the compressor unit and air cooler, vacuum the system and charge refrigerant

-10~+15°C Fruit Vegetable Cold Storage Warehouse for Supermarket 10

Step 7. All cable finally connected to the electricity box, get the power connected

-10~+15°C Fruit Vegetable Cold Storage Warehouse for Supermarket 11

Step 8. Finished and get ready for turning on after the compressor have been warmed up



-10~+15°C Fruit Vegetable Cold Storage Warehouse for Supermarket 12
Cold room panels(PU sandwich panel) and doors will be packed by PVC film, refrigeration equipment will be packed by wooden case.
We have professional shipping companies like MSK,CSCL,CNC,COSCO,APL to support us on shipment. Your cargos will be delivered to you safely and quickly. We'll also choose the most suitable way and lowest delivery cost for you.
