Our aim at RUIBEI is to be recognized as THE BEST CHOICE and BUSINESS PARTNER.
Place of Origin: | China |
Brand Name: | coldstar |
Certification: | CE, RoHS |
Model Number: | ZBJ-4400T |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden box |
Delivery Time: | 10 days |
Payment Terms: | L/C, T/T |
Supply Ability: | 5000 Set/Sets per Month |
Product Name:: | Cube Ice Maker | Brand Name:: | EASYCOOL |
---|---|---|---|
Condensing Unit: | Water Cooling | Power (W):: | 8500 |
Standard Ice Size(W*D*Hmm): | 22*22*22 | Product Dimention(W*D*Hmm): | 1230*1240*2200 |
Ice Shape: | Cube Ice | Voltage: | 380V |
Condition: | New | Warranty: | 1 Year |
After-sales Service Provided: | Free Spare Parts,Online Support | Type: | Ice Machine |
High Light: | commercial ice maker,commercial ice cube machine |

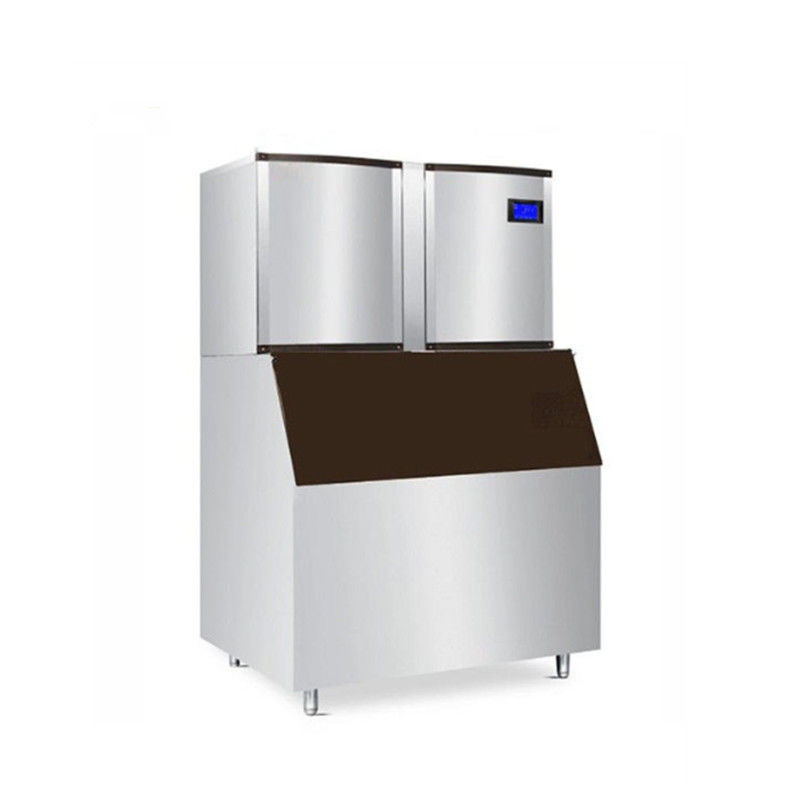

Big Industrial Ice Making Equipment With Imported Compressors And CE Certification
Ice making machine features:
♦ Easy Read Display-communicates operating status, cleaning reminders, and asset information through a blue illuminated display
♦ Imported Parts- Import configuration from Europe, ABS insulation material and 304# sus material;
♦ Energy Star- Industry-leading high performance copper-nickel evaporator, shorter freeze and yield time;Water-flow ice making system which makes the capacity 10% higher than other similar products;
♦ Friendly Environment-Using advanced noise reduction technology to make your environment more green;
♦ Easy to clean foodzone- hinged front door swings out for easy access. Removable water-trough, distributiong tube, curtain, and sensing probes for fast and efficient cleaning;
♦ Provides Superior Corrosion Resistance- Stainless finish with innovative clear-coat resist fingerprints and dirt;
Sepcifications:
Product dimention(W*D*Hmm) | 1230*1240*2200 |
Packing dimention(W*D*Hmm) | 1370*1450*2400 |
Ice shape | cube/dice |
Standard Ice size(W*D*Hmm) | 22*22*22 |
Testing water temp. | 10 Celsius degree |
Testing Ambient temp. | 15 Celsius degree |
Voltage/frequency | 220V/1N/50HZ |
Power | 8500W |
Output | 2000kgs |
Ice Bin(Ice storage) | 800kgs |
Compressor | Embraco R22/R404a |
Condensing unit | water cooling |
Condensing fan | EBM(German) |
Expansion Vale | Danfoss(Demark) |
Solenoid Vale | Saginomiya (Japan) |
Water Pump | EBM(German) |
Filter | Danfoss(Demark) |
IC Mother board | Paxike(Kongkong) |
Plug | for optional |
Package | Carton+wooden frame |
Quality and Safety:
We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. From the first step of collecting raw material to the last step of shipment, every single step, we all spend a lot of input to strictly inspect the quality and finally satisfy our customers.

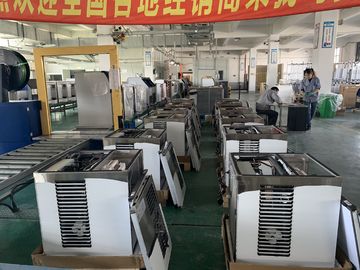

Factory manager has 30 years kitchen products production experience. Factory R&D and QC team are rich experienced in kitchen products production line.
After sales service
we respect your feed back after receive the goods
we provide 12 months warranty after goods arrive
we promise all spare parts available in lifetime use
we resolve your complain within 48 hours
Professional sale
we value every inquiry sent to us ,ensure quick competitive offer
we cooperate with customer to bid tenders ,provide all necessory document
we are a sales team ,with all techinical support from engineer team
Product display:
More models:
Model | Power supply | ice shape | max ice output | storage capacity | Overall Size(mm) |
Vertical ice maker (Air cooled) | |||||
LB55S | 220V/260W | square | 25kg | 20kg | 500*400*840mm |
LB80S | 220V/320W | square | 40kg | 20kg | 500*400*840mm |
LB100S | 220V/350W | square | 50kg | 27kg | 500*550*840mm |
LB120S | 220V/360W | square | 60kg | 27kg | 500*550*840mm |
LB150S | 220V/490W | square | 70kg | 40kg | 600*670*900mm |
LB175S | 220V/510W | square | 80kg | 40kg |
600*670*900mm |
LB210S | 220V/750W | square | 100kg | 40kg | 600*670*900mm |
LB300S | 220V/850W | square | 130kg | 40kg | 600*670*900mm |
Separated ice maker (water cooled/Air cooled) | |||||
LB300T | 220V/800W | Square | 140kg | 100kg | 570*830*1330mm |
LB400T | 220V/900W | Square | 180kg | 140kg | 570*830*1560mm |
LB500T | 220V/1000W | Square | 230kg | 200kg | 770*890*1560mm |
LB600T | 220V/1250W | Square | 270kg | 200kg | 770*890*1560mm |
LB700T | 220V/1350W | Square | 330kg | 200kg | 770*890*1560mm |
LB1000T | 220V/2350W | Square | 480kg | 290kg | 770*890*1650mm |
LB1500T | 380V/3000W | Square | 700kg | 455kg | 1230*930*1880mm |
LB1950T | 380V/4000W | Square | 900kg | 455kg | 1230*930*1930mm |
LB2200T | 380V/4500W | Square | 1000kg | 455kg | 1230*930*1980mm |
LB3300T | 380V/7000W | Square | 1500kg | 800kg | 1230*1240*2200mm |
LB4400T | 380V/8500W | square | 2000kg | 800kg | 1230*1240*2200mm |
Remark : | |||||
1.Inlet water 16 °C ,ambient temperature 35 °C . | |||||

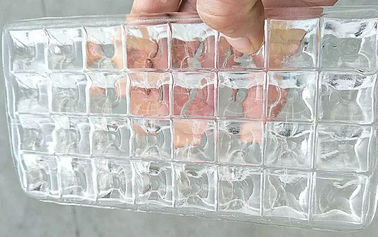

2.Ice cube size :22*22*22mm,Weight is 10gr,Bigger one is need to customise from 15gr-30gr | |||||
3.Voltage :380V/220V ;50HZ/60HZ . |
Product packaging:
Contact Person: Joe Leung
Tel: +8613302899968
