Our aim at RUIBEI is to be recognized as THE BEST CHOICE and BUSINESS PARTNER.
 |
| Place of Origin: | China |
| Brand Name: | EASYCOOL |
| Certification: | CE, RoHS |
| Model Number: | ZBJ-3300T |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden box |
| Delivery Time: | 10 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 6000 Set/Sets per Month |
| Product Name:: | Cube Ice Maker | Brand Name:: | OEM |
|---|---|---|---|
| Compressor: | Embraco R22/R404a | Water Pump: | EBM(German) |
| Voltage (V):: | 380 | Temperature Type: | Single-temperature |
| Function: | Cold Storage & Freezing | Transport Package: | Wooden Packege |
| Power Source: | Electric | Feature: | Save Power, Advanced Technology |
| Color: | According To The Clients′requirement | Application: | Ice Making |
| High Light: | commercial ice maker,commercial ice machine |
||

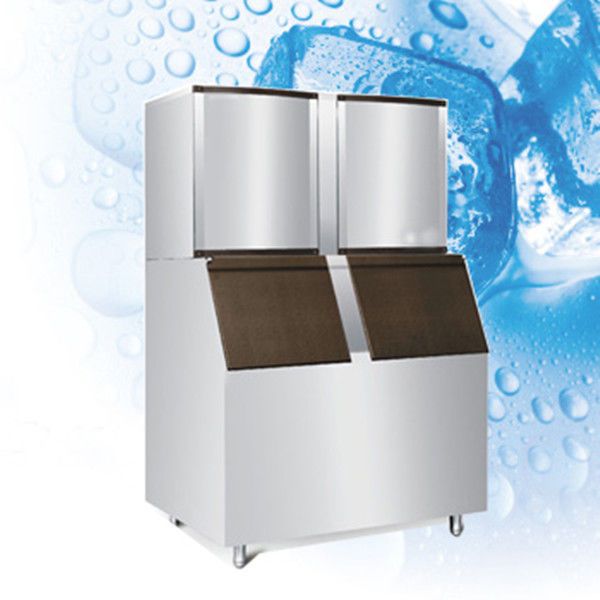

EBM Water Pump Industrial Ice Making Equipment With Imported Compressors

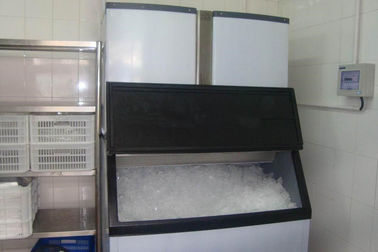

Cube ice machine are widely used in hotels, restaurants, bars, fast-food shops, supermarkets and cold drink shops, etc.
cube ice machine are highly efficient, energy saving, safe and environmentally friendly and are quickly becoming the most popular choice for clients around the world.
the ice peel off; it only takes as fast as 150-180 seconds.
The importation of water drain function makes ice cleaner and crystallizes the ice by draining out the water in the cold water tank.
Sepcifications:
|
Product dimention(W*D*Hmm) |
1230*1240*2200 |
|
Packing dimention(W*D*Hmm) |
1370*1450*2400 |
|
Ice shape |
cube/dice |
|
Standard Ice size(W*D*Hmm) |
22*22*22 |
|
Testing water temp. |
10 Celsius degree |
|
Testing Ambient temp. |
15 Celsius degree |
|
Voltage/frequency |
220V/1N/50HZ |
|
Power |
7000w |
|
Output |
1500kgs |
|
Ice Bin(Ice storage) |
800kgs |
|
Compressor |
Embraco R22/R404a |
|
Condensing unit |
water cooling |
|
Condensing fan |
EBM(German) |
|
Expansion Vale |
Danfoss(Demark) |
|
Solenoid Vale |
Saginomiya (Japan) |
|
Water Pump |
EBM(German) |
|
Filter |
Danfoss(Demark) |
|
IC Mother board |
Paxike(Kongkong) |
|
Plug |
for optional |
|
Package |
Carton+wooden frame |
| Model | Power supply | ice shape | max ice output | storage capacity | Overall Size(mm) |
| Vertical ice maker (Air cooled) | |||||
| LB55S | 220V/260W | square | 25kg | 20kg | 500*400*840mm |
| LB80S | 220V/320W | square | 40kg | 20kg | 500*400*840mm |
| LB100S | 220V/350W | square | 50kg | 27kg | 500*550*840mm |
| LB120S | 220V/360W | square | 60kg | 27kg | 500*550*840mm |
| LB150S | 220V/490W | square | 70kg | 40kg | 600*670*900mm |
| LB175S | 220V/510W | square | 80kg | 40kg |
600*670*900mm |
| LB210S | 220V/750W | square | 100kg | 40kg | 600*670*900mm |
| LB300S | 220V/850W | square | 130kg | 40kg | 600*670*900mm |
| Separated ice maker (water cooled/Air cooled) | |||||
| LB300T | 220V/800W | Square | 140kg | 100kg | 570*830*1330mm |
| LB400T | 220V/900W | Square | 180kg | 140kg | 570*830*1560mm |
| LB500T | 220V/1000W | Square | 230kg | 200kg | 770*890*1560mm |
| LB600T | 220V/1250W | Square | 270kg | 200kg | 770*890*1560mm |
| LB700T | 220V/1350W | Square | 330kg | 200kg | 770*890*1560mm |
| LB1000T | 220V/2350W | Square | 480kg | 290kg | 770*890*1650mm |
| LB1500T | 380V/3000W | Square | 700kg | 455kg | 1230*930*1880mm |
| LB1950T | 380V/4000W | Square | 900kg | 455kg | 1230*930*1930mm |
| LB2200T | 380V/4500W | Square | 1000kg | 455kg | 1230*930*1980mm |
| LB3300T | 380V/7000W | Square | 1500kg | 800kg | 1230*1240*2200mm |
| LB4400T | 380V/8500W | square | 2000kg | 800kg | 1230*1240*2200mm |
| Remark : | |||||
| 1.Inlet water 16 °C ,ambient temperature 35 °C . | |||||
| 2.Ice cube size :22*22*22mm,Weight is 10gr,Bigger one is need to customise from 15gr-30gr | |||||
|
3.Voltage :380V/220V ;50HZ/60HZ . |
|||||
Quality and Safety:
We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. From the first step of collecting raw material to the last step of shipment, every single step, we all spend a lot of input to strictly inspect the quality and finally satisfy our customers.
Factory manager has 30 years kitchen products production experience. Factory R&D and QC team are rich experienced in kitchen products production line.
