Our aim at RUIBEI is to be recognized as THE BEST CHOICE and BUSINESS PARTNER.
 |
| Place of Origin: | Foshan City |
| Brand Name: | EASYCOOL |
| Certification: | ISO2001 |
| Model Number: | SR-1M |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 10 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000pcs/year |
| Name：: | Cold Room, Cold Storage Room | Temperature:: | 25C~-20C |
|---|---|---|---|
| Voltage:: | 318V | Wall Panel:: | PU Panel |
| Cold Room Doors:: | Sliding Door | Condenser:: | Air Cooled Type |
| Refrigerant:: | R22,R404A Or Others | After-sales Service Provided:: | Food Freezer Storage |
| Warranty:: | 1 Year | ||
| High Light: | hot food display case,heated food display case |
||

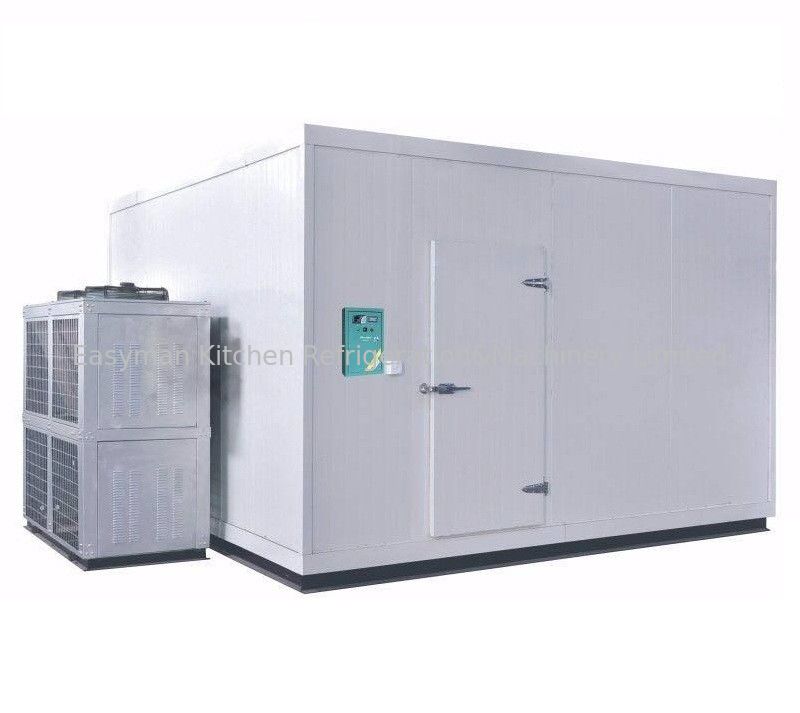

Prefabricated Energy-saving Cold Room Food Storage Room
Our modular walk in cold storage series is an integrated family of sandwich panels designed for quick cold room assembly. The panel configuration has been reduced to a minimum, so the overall effect is to offer the clients maximum design possibilities for cold rooms with a minimum amount of panels required on the site. All products from the modular range can be easily assembled without the need for special tools.
Our advantage:
1. Over 10 years manufacturing experience, products sell well in many countries, full experience support to give you most suitable system
2. Compressor, we use all new origin famous brand, Bitzer, Copeland, Tecumseh, Maneruop or brand you appointed. other accessories are same,
3. Professional engineer support, can assist you from design to after sale service.
Specification for Cold room:
|
Dimension |
Length x width x height customized |
|
Panel |
Polyurethane foam insulation panel,38~42kg/m3, fire resistance |
|
Thickness of panel |
75mm,100mm, 120mm,150mm,180mm,200mm optional |
|
Surface steel |
color steel or stainless steel option |
|
Panel Connection |
cam lock connection |
|
Door type |
sliding door, hinged door option, size can be customized |
|
Cold room temperature |
-35~+15'C |
|
Refrigeration unit |
Bitzer Tecumseh, Copeland compressor for options |
|
refrigerant |
R134a, R404a, R507c |
|
voltage |
380V/3ph/50~60hz, 230V/3PH/50~60HZ. |
|
application |
Seafood, meat quick freezing, and fruit and vegetable fresh keeping |
Polyurethane foam panel advantage and specification:
|
Thickness(mm) |
Temperature application(°C) |
Weight(kg/m²) |
R-value(m².k/w) |
|
50 |
Above -5'C |
12.8 |
2.28 |
|
75 |
above-15'C |
13.8 |
3.42 |
|
100 |
above-15'C |
14.8 |
4.55 |
|
120 |
above-15'C |
15.7 |
5.6 |
|
150 |
above-15'C |
16.8 |
6.82 |
|
200 |
above-15'C |
18.8 |
9.12 |
Tolerance Control:
|
Length(mm) |
Tolerance(mm) |
Straightness |
||
|
Length |
Width |
Thickness |
||
|
500~3600 |
±3 |
0~3 |
±1 |
1/500 |
|
3600~6000 |
±4 |
0~3 |
||
|
6000~12000 |
±6 |
0~3 |
||

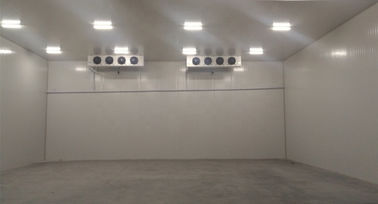

Our project:
Thermal insulation panel:
Compressor unit:
Air cooled:
Packaging and installation:
Cold storage installation steps:
Step 1. Assembled all floor panels
Step 2. Assemble the wall panels
Step 3. Put up the roof panels and hang the air cooler to the roof panel
Step 4. Assemble the door[sliding door and hinged door optional]
Step 5. Fix the compressor unit at a place with good ventilation
Step 6. Connect the compressor unit and air cooler, vacuum the system and charge refrigerant
Step 7. All cable finally connected to the electricity box, get the power connected
Step 8. Finished and get ready for turning on after the compressor have been warmed up
