| Place of Origin: | Guangdong China |
| Brand Name: | EASYCOOL |
| Certification: | CE, CB |
| Model Number: | EASYMAN COOL COLD ROOM |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden pallet |
| Delivery Time: | 10 working days after getting deposit payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 4000pieces per month |
| Temp.: | -20~10 | Dimension(W*H*D): | Customized |
|---|---|---|---|
| Applicable Industrial: | Farms, Retail, Food Shop, Food & Beverage Shops | Voltage: | 220V/380V |
| Compressor Brand: | Bitzer, Emerson Copeland, Danfoss, Tecumseh | Refrigerant: | R404a |
| Size:: | 6475*1800*2150mm | Doors: | Glass Door |
| Thickness Of Panel: | 50mm 75mm 100mm 120mm 150mm | External Material: | Painting Steel Sheet/SS/Aluminum/Galvanized Sheet(Option) |
| Core Material: | Polyurethane | Warranty: | 1 Year |
| High Light: | Copeland Supermarket Display Showcase,R404a Walk In Freezer |
||

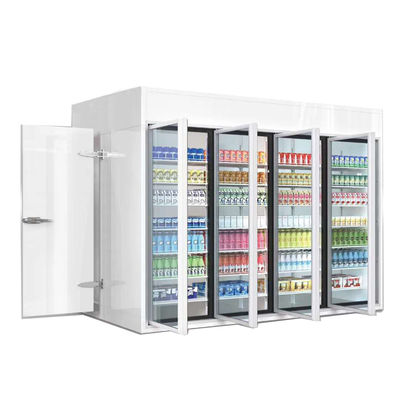

Supermarket Tempered Glass Door Display Fridge Frozen Food Walk In Freezer
The whole set of walk in freezer include cooling system, glass door, shelves, panels, hinge doors; control box etc.
The glass door with demist function, so it will not moisure when it is rainy day, keep clear all the time;
The depth of walk in freezer is 1800mm, the back area has large space for goods storage and front part for displaying;
The panel adopt cam lock system to connect panels together and keep it tight. And panel density is 45kgs per cbm;
The walk in cold room we can make temperature positive or negative, from -20C to 10C.
The shelves with racks better for cans or bottles fix, and each side panel has LED light for better lighting;
The Panel details same as the walk in freezer cold room, see the chart as below:
|
Cold Room Panel Information |
||
|
Material |
Core Material |
Polyurethane |
|
External Material |
Painting steel sheet/SS/Aluminum/Galvanized sheet(Option) |
|
|
Thickness |
Core Thickness |
65mm |
|
Extenal Thickness |
0.726mm-1mm |
|
|
Cold Room Panel Density |
42KG/Cubic Meter |
|
|
Compressor Brand |
Panasonic, Copeland, Bitzer(option) |
|
|
Fire Rating |
B2, (B1 is coming soon) |
|
|
Bonding Strength |
≥0.100MPa |
|
Specification:
|
Item No. |
Dimension |
Temperature |
Doors |
Rate Voltage |
|
ELD-3HB |
2245*1800*2150mm |
0-10C/-20C |
3 |
220v/380v-50hz/60Hz |
|
ELD-4HB |
2950*1800*2150mm |
0-10C/-20C |
4 |
220v/380v-50hz/60Hz |
|
ELD-5HB |
3655*1800*2150mm |
0-10C/-20C |
5 |
220v/380v-50hz/60Hz |
|
ELD-6HB |
4360*1800*2150mm |
0-10C/-20C |
6 |
220v/380v-50hz/60Hz |
|
ELD-7HB |
5065*1800*2150mm |
0-10C/-20C |
7 |
220v/380v-50hz/60Hz |
|
ELD-8HB |
5770*1800*2150mm |
0-10C/-20C |
8 |
220v/380v-50hz/60Hz |
|
ELD-9HB |
6475*1800*2150mm |
0-10C/-20C |
9 |
220v/380v-50hz/60Hz |
For more details of glass door walk in freezer, call me or email me! I will always here wait for you!
Glass door cold storage display:
1. Quality Control
To ensure the quality of our vehicles and other products, Our QC staffs do strict supplier evaluations, in-coming inspections, in-process inspections, final inspections and pre-delivery inspections. The most important is that we listen to what our customers need and we are always looking for ways to improve the quality of our products through continuous improvement.
2. OEM Ability
We have built stable and long-term cooperate relationshilp with supermarkets,we canalso provide
OEM and Agent services to our customers over the world.
3. Parts Available
We have spare parts for immediate delivery to anywhere in the world. While our equipments become standard with more features than anyone else, we also offer more optional parts for our equipmetns than anyone else.
4. Good After-service
We take customer satisfaction and product quality as the first priority for us. We supply reliable warranties and good after-sales services.
