-10~-30 °C Low Temperature Freezer 100ton Seafood Fish Cold Roo

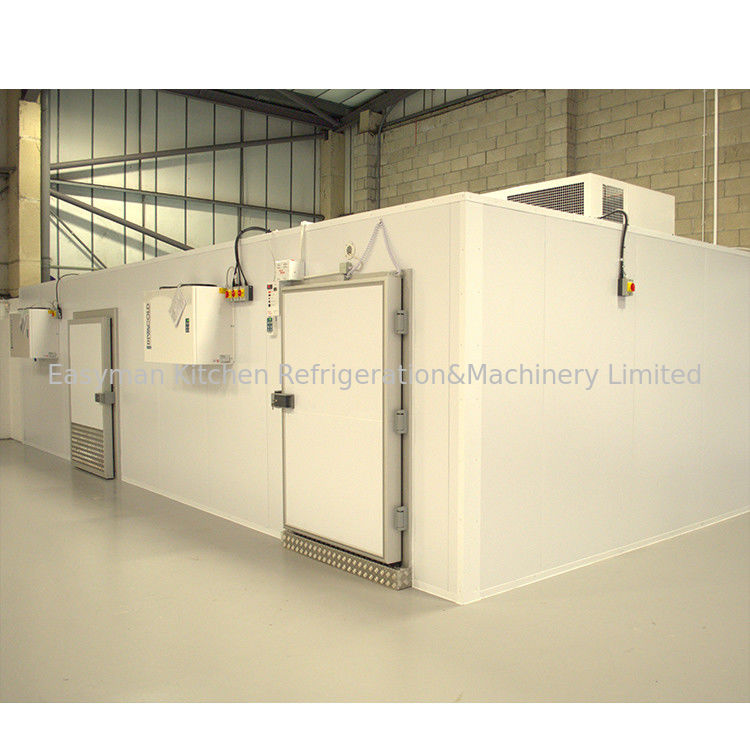

-10~-30 °C Low Temperature Freezer 100ton Seafood Fish Cold Room

Polyurethane insulation board design for cold room, the main steel structure to facilitate construction. Portable sliding doors, and out of cold storage more convenient, easy to operate. Water defrosting evaporator defrost faster, save operating costs.Cold storage door with anti-shock protection, an increase of reliability.

Features:
(1) Temperature range: -60ºC~+20ºC are all available.
(2) Size: Customize.
(3) Functions: fresh-keeping, freezing, quick-freezing, fire-proof, explosion-proof, air-conditioning are all available.
(4) Fully automatic control system.
(5)Easy to install and dismantle
(6) Temperature Alarm
(7) Data Logger
(8)PLC electric control ( LG,SIMENS, OMRON..famous parts)
(9) Refrigerant:R22,R404

Components:
(1) Condensing unit: Bitzer, Copeland, Maneurop, Fusheng,Frashcold
(2) Evaporator: RUIXUE air-cooler.
(3) Insulation Panel: PU,
(4) Other accessories: world-famous brands, like Danfoss, Castle, Every Control, Siemens, LG,Schneider

Details description:

	Cold room panel   panel thickness:100mm~200mm, standard width of panel is 960mm
	Standard evaporator:   1) Cabinet of magnalium steel, corrosion-proof 2) Fin space: 4.5mm, 6.0mm and 9.0mm 3) Stainless steel heater, defrosting evenly 4) Mechanically expanded pipes with Aluminium fins
Air cooled condenser:   1) Cabinet is steel plate with plastic spray, corrosion proof 2) Mechanically expanded pipes with Aluminium fins; External fans; better heat transfer & durable 3) Tested in 2.8MPa gas pressure, no any potential leakage 4) Nitrogen blow away all Pollution in pipe system, ensuring longer lifetime
Condensing unit:   1) Original new Bitzer compressor, Gas R404A, R507, etc 2) World famous brand components: Schneider, Emerson, Castel, etc 3) No leakages, 2.8MPa pressure test through out production, excelent workmanship 4) Power saving design

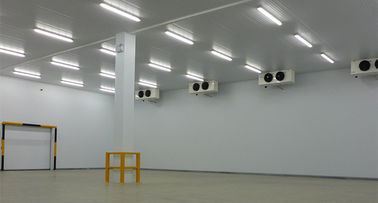

Our previous projects:

Cold storage installation steps:

Step 1. Assembled all floor panels
Step 2. Assemble the wall panels
Step 3. Put up the roof panels and hang the air cooler to the roof panel
Step 4. Assemble the door[sliding door and hinged door optional]
Step 5. Fix the compressor unit at a place with good ventilation
Step 6. Connect the compressor unit and air cooler, vacuum the system and charge refrigerant
Step 7. All cable finally connected to the electricity box, get the power connected
Step 8. Finished and get ready for turning on after the compressor have been warmed up

Our Services:
1. If necessary, we can go abroad to help customers to install.
2. Professional Team: Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
3. Good Quality: We have very strict quality control system. Good reputation in the market.
4. Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.
5. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature.
