Our aim at RUIBEI is to be recognized as THE BEST CHOICE and BUSINESS PARTNER.
Place of Origin: | Foshan city |
Brand Name: | EASYCOOL |
Certification: | CE |
Model Number: | Freezer room |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiable |
Packaging Details: | Crate package |
Delivery Time: | 15days |
Payment Terms: | T/T, L/C |
Supply Ability: | 5000 units per month |
Unit Size: | 2000*2000*2100mm | Temperature Range: | -20℃ |
---|---|---|---|
Compressor Brand:: | Bitzer/Copeland | Insulation Material: | Polyurethane Sandwich Insulation Panel |
Door Type: | Hinged Door/sliding Door | Temperature Control: | Digital |
Gas: | R404a | Voltage: | 220V/50~60HZ, 380V/50HZ 3P |
High Light: | ice storage room,prefabricated cold room |

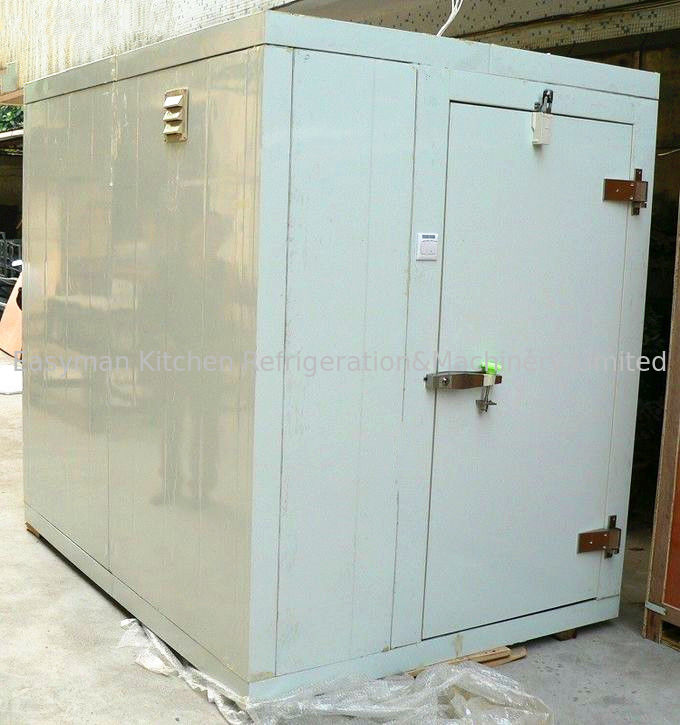

Custom Solar Power Cold Storage Room
The small cold room is wide use in hotel kitchen and restaurant, for keeping meat, fish and other frozen food freesh. It's a good choice for your limited space. Easy to install and operate. We use famous and stable refrigeration unit. Any customized size and temperature are acceptable. Meanwhile, the solar power system is good for power shortage location.
1. Convex structure: Panels are joined together by means of tongue and groove and locked together by cam- lock on each side of the panel to ensure air tight joints. There’s no need of rivets, thus reduce the cost and save the time.
2. Easier and faster installation,can be expended or removed in the future.
3. Perfect heat insulation: High density thermo insulated PUR foam up to 38kg/m³or above for perfect cold-room heat insulation efficiency.
4.Various surface steel choices: Color steel sheet/Stainless steel sheet/ Embossed aluminum sheet,The standard metal sheets are all smooth. Standard color of steel sheet is white-gray, others are natural metallic.
5. Low flammable: Low flammable PUR foam is used in the cold room panel, with fire retardant B2 grade.
6. Highly hermetical: Silica gel are used on the panel edge of the joint parts of each sandwich panel to ensure perfect sealing to avoid the cooling air leakage from the cool room or moisture inside the PU insulated panel for the best refrigeration and frozen storage result.
7. Load bearing: The compressive strength is150kpa above, people can walk on the floor panels and allow trolleys can go in and out.
Core Material
|
Polyurethane(PU) density 43kg/m3 or above
|
Surface Material
|
Color steel,galvanized steel,embossed aluminum,stainless steel
|
Door type
|
Swing(half-buried,all-buried door),manual sliding door,automatic sliding door,impact door,rolling up door,etc.
|
Panel thickness
|
Thickness can be 50mm,75mm,100mm,120mm,150mm,200mm,according to different working temperature and outside condition of ambient
temperature. |
Temperature for reference:
1. Processing room: +10℃;
2. Fruit, vegetable, dry food: 0℃~ -5℃;
3. Medicine, cake pastry, chemical material: 0℃~ -5℃;
4. Ice storage: -5℃~-15℃;
5. Fish, meat storage: -18℃~ -25℃;
6. Blast freezer: -35℃
Details description:
Machine Parts
Cold room panel |
|
Main Parts
|
|
Machine Parts
Stable performance condening unit |
|
|
Machine Parts

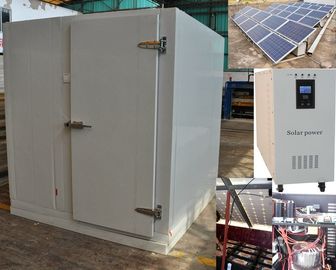

Solar panel system |
Machine Parts
Cold room lamp inside |
|
Machine Parts
We can provide you shelf inside if you need |
Our previous projects:
Package and Loading:
FAQ
Q: What is the MOQ of your products?
A: We accept sample order.
Q: I'd like to know your Payment way?
A: The payment way is T/T, L/C at sight.
Q: How about the Delivery time?
A: 20 days after receipt of deposit and confirmation on all designs based of normal condition.
Q: We'd like to print our Logo on the products,can you make it?
A: We provide OEM service which including logo printing.
Q: Shall we pay Extral cost for OEM service?
A: The OEM service are totally free of charge.
Q: Can i get Discount from buying your goods?
A: The price depends on the quantity, we'll automatically making discount to our regular customer.
Contact Person: Joe Leung
Tel: +8613302899968
