Our aim at RUIBEI is to be recognized as THE BEST CHOICE and BUSINESS PARTNER.
 |
| Place of Origin: | Guangdong China |
| Brand Name: | EASYCOOL |
| Certification: | CE, CB |
| Model Number: | EASYCOOL COLD ROOM |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood case pallet for cold room |
| Delivery Time: | 25-30working days after getting deposit payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 6000 Set/Sets per Month |
| Material: | Polyurethane Foam | Dimension(W*H*Dmm): | Depend |
|---|---|---|---|
| Voltage: | 220V /380V/420V/ 440V | Compressor: | Copeland Bitzer Brand |
| PU Panel Thickness: | 50mm 75mm 100mm 120mm 150mm 200mm | Certification: | CE,ISO9001,SASO,SGS, |
| Refrigeration System: | Bitzer , Copeland Compressor,evaporator ,condenser Etc | Cooling Approach: | Water Cooled Or Air Cooled |
| Door: | Single Swing Door | Weight: | Customized |
| Application: | Beef Storage | After Warranty Service: | Video Technical Support, Online Support, Spare Parts |
| Temp. Range: | -60~+20'C | Warranty: | 1 Year |
| High Light: | ice storage room,cold room freezer |
||

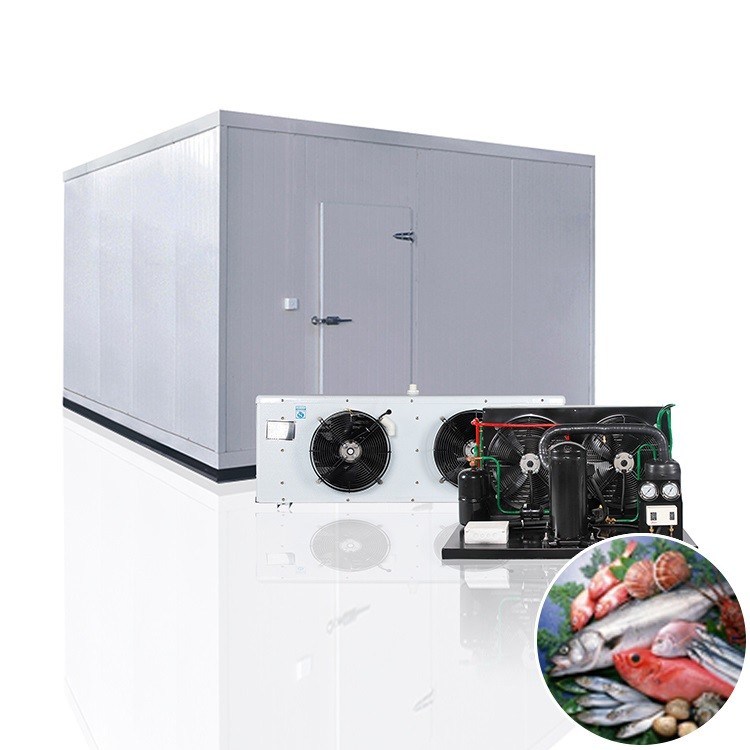

Customized Freezer Cold Storage Room For Green Tea Or Pizza
|
Dimension |
Length(m)*Width(m)*Height(m) |
|||
|
Refrigeration unit |
Copeland/Bitzer etc. |
|||
|
Refrigeration type |
Air cooled/water cooled/evaporation cooled |
|||
|
Refrigeration |
R404a,R447a,R448a,R449a,R507a Refrigerant can be option |
|||
|
Defrost Type |
Electric defrosting |
|||
|
Voltage |
220V/50Hz,220V/60Hz,380V/50Hz,380V/60Hz,440V/60Hz optional |
|||
|
Panel |
New material polyurethane insulation panel,43kg/m3 |
|||
|
Panel thickness |
50mm,75mm,100mm,150mm,200mm |
|||
|
Type of door |
Hanged door,sliding door,double swing electric sliding door,truck door |
|||
|
Temp. of room |
-60℃~+20℃ optional |
|||
|
Functions |
Fruit,vegetable,flower,fish,meat,chicken,medicine,chemical,electronics,etc. |
|||
|
Fittings |
All necessary fittings are included,optional |
|||
|
Place to assemble |
Indoor/out door(concrete construction building/steel construction building) |
|||
Cold room PU sandwich panels system
Polyurethane foam is been sandwiched between the two outer skins and hence is known as PU sandwich panels. We are engaged in manufacturing reliable PU sandwich panels in variegated specifications.Those two layers are available in profile with zinc coated, galvanized steel, embossed aluminum, stainless steel or other material sheets.
Density: 40-42kgs/m3
Thickness of PU panels: 50mm 75mm 100mm 120mm 150mm 200mm
Thickness of steel:0.426mm and 0.5mm
Steel material: color steel plate and galvanized steel plate and stainless steel plate.
Refrigeration unit, condensing unit, air cooled cooling system
1.Intergrated modular assembly, factory pre-assembled refrigeration parts and electrical components.
2.Compacted structure, easy to install and maintain.
3.Widely used in restaurants, shops, shopping malls, cold storage and other place.
4.Whole unit needs to install in a shell for accessories protection.
Configuration of condensing unit:
Compressor, condenser, axial fan with external rotor, liquid receiver, HP/LP controller, HP/LP gauge, dry filter, solenoid valve, sight glass, check valve, junction box, etc.
Brand of compressor: Germany Original Bitzer compressor American Original Copeland compressor
Refrigerant: R22, R404A, R134A
Voltage: Customized according to your local power source
Packaging and delivery:
Our Services
1) Video service for installation
2) Accept OEM,ODM
3) 24 hours technical support and after sales services
4) Lifetime with professional engineer support.
5) Within 1 year, supply spare parts for free if the cold room for vegetables has manufacturer quality problem with convincing evidence.
Could you please provide information as below when you send the inquiry:
1. What’s the size of cold room?(Length×Width×Height(M))
2. What kind of products will put into the cold room?
3. Does the products freeze before put into the cold room?
4. What’s the stored time for products?
5. What’s the installation site of cold room?
