Our aim at RUIBEI is to be recognized as THE BEST CHOICE and BUSINESS PARTNER.
Place of Origin: | Guangdong China |
Brand Name: | coldstar |
Certification: | CE,CB,SASO,ETL,NSF |
Model Number: | RB3610-5M |
Minimum Order Quantity: | 1 unit |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden frame packaging |
Delivery Time: | 10-15working days |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 5000 units per month |
Application: | Convenience Store | Warranty: | 2 Years Compressor |
---|---|---|---|
Power Supply: | 220V/380V/50HZ | Shelf: | 7-layer |
Cooling System: | Fan Cooling System | Power (W): | 500W |
Unit Size: | 3610*1800*2100mm | Glass: | Tempered Hollow Low-e Glass |
Compressor: | Brand Compressor | Temperature: | 0~10 C |
High Light: | 500W Walk In Cooler,Tempered Hollow Glass Walk In Cooler |

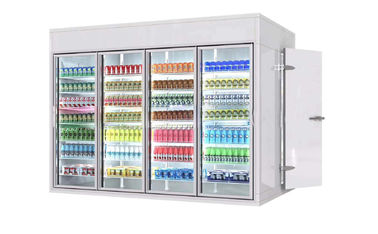

Display walk in cooler freezer with glass door
Cold room structure
COLDSTAR cold room consists of cold room panel (PU sandwich panel), cold room door, condensing unit, evaporator (air cooler),temperature controller, air curtain, copper pipe, expansion valve and other refrigeration fittings.
Cold room applications
Cold room is widely used in food industry, medical industry, and other related industries.
In food industry, cold room is usually used in food process factory, slaughterhouse, fruit and vegetable warehouse,supermarket,hotel, restaurant, etc.
In medical industry, cold room is usually used in hospital, pharmaceutical factory, blood center, gene center, etc.
Other related industries, such as chemical factory, laboratory, logistics center, they also need cold room.
Cold room features & benefits
* Back supplement of the drinks is easy for the clerk to use and it can save a lot of business time.
* The cold room can storage the drinks and it can supplement the cold drinks to cooler quickly when it was in peak time.
* Modular design for multi door.we can offer 3-10 glass doors to satisfy different customer's request.
* The imported compressor and refrigeration unit are reliable performance guarantee
* The gravity shelf is optional for customer and it is easy for customer to fetch the drinks constantly.
Optional
* Self closing door
* Normal shelf or gravity shelf
* Plug-in or remote refrigeration sytem
* Canopy or without canopy
* Dimensions is customized
Model | Unit size(mm) | Temperature range | Doors | Cooling system | Refrigerant |
RB2210-3M | 2210*1800*2100 | 2~10 / -18~-22 | 3 | Air cooling sysytem | R404a |
RB2910-4M | 2910*1800*2100 | 2~10 / -18~-22 | 4 | Air cooling sysytem | R404a |
RB3610-5M | 3610*1800*2100 | 2~10 / -18~-22 | 5 | Air cooling sysytem | R404a |
RB4310-6M | 4310*1800*2100 | 2~10 / -18~-22 | 6 | Air cooling sysytem | R404a |
RB5010-7M | 5010*1800*2100 | 2~10 / -18~-22 | 7 | Air cooling sysytem | R404a |
RB5710-8M | 5710*1800*2100 | 2~10 / -18~-22 | 8 | Air cooling sysytem | R404a |
RB6410-9M | 6410*1800*2100 | 2~10 / -18~-22 | 9 | Air cooling sysytem | R404a |
RB7110-10M | 7110*1800*2100 | 2~10 / -18~-22 | 10 | Air cooling sysytem | R404a |
Product display
