Restaurant Commercial Cold Storage Cold Room,Walk In Refrigerator,Freezer Room

Restaurant Commercial Cold Storage Cold Room,Walk In Refrigerator,Freezer Room

  • Restaurant Commercial Cold Storage Cold Room,Walk In Refrigerator,Freezer Room
  • Restaurant Commercial Cold Storage Cold Room,Walk In Refrigerator,Freezer Room
Restaurant Commercial Cold Storage Cold Room,Walk In Refrigerator,Freezer Room
Product Details:
Place of Origin: Foshan City
Brand Name: EASYCOOL
Certification: CE,ETL
Model Number: SR-4M
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 10 days
Payment Terms: L/C, T/T
Supply Ability: 5000pcs/year
Contact Now
Detailed Product Description
Thickness:: 50, 75, 100, 150 , 200 Mm Density:: 38 40 43 46 Kg / M3
Usage:: Wall & Floor & Ceiling Joint:: Camlock (tongue And Groove)
Door:: Sliding Door And Swing Door Temperature:: 0~-50℃
Panel Thickness:: 100mm Application:: Hotels, Hospitals, Blood Banks, Poultry Slaughter
High Light:

hot food display case

,

food warmer showcase

Restaurant Commercial Cold Storage Cold Room,Walk In Refrigerator,Freezer Room



Walk in freezer Size and temperature can be made according to the customers' requirements
0 °C ~ + 22°C: Communication Station, Mushroom Plant, Medicines Storage, Processing Room, Packing Room
-5 °C ~ + 5 °C: Pre-Cooling, Keep Fresh,
-10 °C ~ -20 °C: Freezer Storage
-25 °C ~ -30 °C: Low Temperature Storage, Quick-Freeze
-35 °C ~ -50 °C: Blast Freezer, Quick-Freezer



Details of the panel joint:
Cold room door panels are joined together by means of tongue and groove and locked together by camlock on each side of the panel to ensure air tight joints.
Cam-lock design fastener to install with the cold room tightly and strongly
Silica gel are used on the cold room door panel edge of the joint parts of each sandwich panel to ensure perfect sealing to avoid the cooling air leakage from the cool roomor moisture inside the PU insulated panel for the best refrigeration and frozen storage result



Doors:
1).Swing door and Sliding door available.
2).Swing door: Manual, Automatic available etc.
3).Door panel made with special pressing technology PU material.
4).Door frame: color steel or stainless steel.
5).With Heater and anti-stuck system.
Hinged doors are of various types such as single leaf or double leaf , overlapping or flush . These doors are always open in the outward direction towards either left or the right .



Specification:

Dimension

Length (m) *Width (m)*Height (m) According to client's requirement .

Panel

polyurethane insulation panel,43kg/m3, fire retardant

Foaming material

BASF

Panel thickness

50mm,75mm,100mm,150mm,200mm

Steel cover

stuccom embossed aluminum,painted galvanized steel,stainless steel,PVC stell

Panel connection

Inserted panel type, use insert to assemble and disassemble

Type of door

hinge door, convex door, sliding door

Temp.of room

-45~+20 degree, optional

Purpose of cold room

fruit,vegetable,flower,fresh/frozen meat etc

Refrigeration unit

Copeland / Bitzer / Sanyo etc

Refrigeration type

air cooled / water cooled

Fittings

all necessary fittings are included, optional

Place to assemble

indoor/out door(concrete construction building/steel construction building)

Voltage

220V/50HZ, 220V/60HZ, 380V/50HZ optional

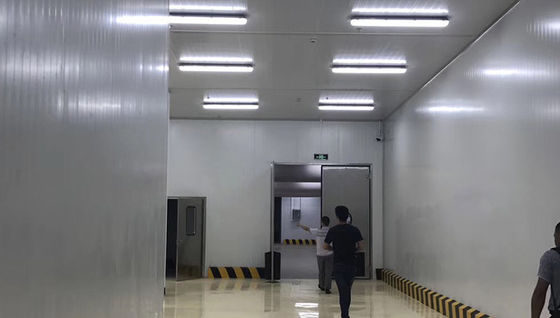

Product display:

Restaurant Commercial Cold Storage Cold Room,Walk In Refrigerator,Freezer Room 0

Restaurant Commercial Cold Storage Cold Room,Walk In Refrigerator,Freezer Room 1

Restaurant Commercial Cold Storage Cold Room,Walk In Refrigerator,Freezer Room 2



Packaging and Loading:

Restaurant Commercial Cold Storage Cold Room,Walk In Refrigerator,Freezer Room 3





Cold storage installation steps:



Step 1. Assembled all floor panels
Step 2. Assemble the wall panels
Step 3. Put up the roof panels and hang the air cooler to the roof panel
Step 4. Assemble the door[sliding door and hinged door optional]
Step 5. Fix the compressor unit at a place with good ventilation
Step 6. Connect the compressor unit and air cooler, vacuum the system and charge refrigerant
Step 7. All cable finally connected to the electricity box, get the power connected
Step 8. Finished and get ready for turning on after the compressor have been warmed up
