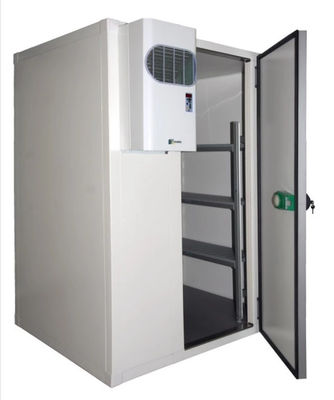

-50~0°C Cold Storage Room For Beef Meat Chicken Frozen

-50~0°C Cold Storage Room For Beef Meat Chicken Frozen

  • -50~0°C Cold Storage Room For Beef Meat Chicken Frozen
  • -50~0°C Cold Storage Room For Beef Meat Chicken Frozen
-50~0°C Cold Storage Room For Beef Meat Chicken Frozen
Product Details:
Place of Origin: Guangdong China
Brand Name: EASYCOOL
Certification: CE, CB
Model Number: EASYMAN COOL COLD ROOM
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Wooden pallet
Delivery Time: 10 working days after getting deposit payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 8000pieces per month
Contact Now
Detailed Product Description
Temp.: -50~25 Dimension(W*H*D): Customized
Applicable Industrial: Farms, Retail, Food Shop, Food & Beverage Shops Voltage: 220V/380V
Compressor Brand: Bitzer Copeland Emerson Refrigerant: R404a
Power(W): Energy Saving Doors: Sandwich Panel Door
Thickness Of Panel: 50mm 75mm 100mm 120mm 150mm Function: Fresh Preservation
After-sale Service: Online Support Warranty: 1 Year
High Light:

prefabricated cold room

,

cold room freezer

-50~0°C Cold Storage Room For Beef Meat Chicken Frozen



What applications do -50~25 Cold Storage Room have?
Regardless of the products they contain, these rooms are very useful for:
1)Goods reception. The sanitary standards require that businesses, such as warehouses and restaurants, have an appropriate temperature to receive their raw materials, which will later be placed in different points. A good cooling system is crucial for these cases.
2)Storage and products handling. This allows an increase in production and marketing, extending shelf life and enabling the
transformation of products.
3)Products display. In these cases, it is very common to use Walk in or Reach in doors, which allow the final consumer to easily access products and, at the same time, have a much more attractive point of sale.



Cold Plate------Polyurethane Sandwich Insulation Panel is used as the sandwich material of the panel. Stainless steel plates,color steel plates and embossed aluminum plates are used as the castings of the panel. Polyurethane is injected into molds and foamed and sticks to a metal surface with thermal insulation material inside shaped by machine.

Thickness of stainless steel plate,embossed aluminum plates,color steel plates can be defined by user.
Specification of cold panel: 75mm,100mm,120mm,150mm,180mm and 200mm.Standardized steel plate width is 960mm and length is 1000mm to 12000mm.(Besides: sizes can be defined by your specific requirements.)



Characteristics:

  • High intensity and good thermal insulation performance;
  • Scientific designing,easy to be assembled or dissembled;Gear shape connection of panels with eccentric sheave lock; the whole panel is flat and the gaps on the panels are sealed by sealing materials to reach the great efficiency of the freezing system.
  • Multi-products and specifications can meet different needs and requirements.



Specification of cold room:

Cold room function Designed temperature range
°C °F
Fresh keeping 0 ~ + 5 32~+41
Quick freezing/blast freezing cold storage -40~-35 -40~-31
Processing area e.g. processing, corridor, loading, +2~+8 +35.6~+46.2
Pre-cooling room/chilling room 0 +3~+2



Cold room
Panel PUR panel/PIR panel/ ,43kg/m3, fire retardant / EPS panel
Panel thickness 50mm,75mm,100mm,150mm,200mm
Type of door hanged door , sliding door, double swing door etc
Temp.of room -60~+20degree C, optional
Purpose of cold room fruit,vegetable,flower , fish,meat ,chicken medicine, chemical, electronics,etc.
Place to assemble indoor/out door(concrete construction building/steel construction building)
Voltage 220V/50HZ, 220V/60HZ, 380V/50HZ, 380V/60HZ optional





Products display:


-50~0°C Cold Storage Room For Beef Meat Chicken Frozen 0

-50~0°C Cold Storage Room For Beef Meat Chicken Frozen 1
-50~0°C Cold Storage Room For Beef Meat Chicken Frozen 2




Matching refrigeration unit specification
-50~0°C Cold Storage Room For Beef Meat Chicken Frozen 3
Refrigeration unit Compressor units for freezing
Compressor brands Bitzer/Copeland/HANBELL l/FUSHENG /DORIN / etc
Condenser Air cooled / water cooled / evaporative cooled
Evaporator Shell-tube,air cooler
Refrigerant R22, R404A, R507C,R717,R744
Defrost Type Electric defrosting/ Hot Freon Defrosting
Compressor Screw ,scroll , reciprocating,parallel
Control DANFOSS, CAREL, SIEMENS





Cold room details:

-50~0°C Cold Storage Room For Beef Meat Chicken Frozen 4

-50~0°C Cold Storage Room For Beef Meat Chicken Frozen 5

-50~0°C Cold Storage Room For Beef Meat Chicken Frozen 6




To make a fast and detailed quotation for you,we would like you to answer some questions about this product as following:
1.What's the products do you want to store in this cold room?

2.Will this cold room be installed inside building or put outside?

3.Could you provide the detailed inside dimension of this cold room?(m)

4.What's the material of cold room panel,Polyurethane or EPS ?(Including the wall panel,floor and roof panel)

5.What's the thickness of cold room panel?(Including the wall panel, floor and roof panel)(mm)

6.Which kind of door do you prefer,Sliding type or hing type? Color steel or stainless steel?

We can do customized dimension according to customers'requirements.
We have access to all the leading Cold Room refrigerators brands and can offer independent advice, and recommend right equipment to meet your business requirements.
